scanpy.pl.tracksplot

scanpy.pl.tracksplot#

scanpy.pl.tracksplot(adata, var_names, groupby, *, use_raw=None, log=False, dendrogram=False, gene_symbols=None, var_group_positions=None, var_group_labels=None, layer=None, show=None, save=None, figsize=None, **kwds)[source]#

Compact plot of expression of a list of genes.

In this type of plot each var_name is plotted as a filled line plot where the y values correspond to the var_name values and x is each of the cells. Best results are obtained when using raw counts that are not log.

groupby is required to sort and order the values using the respective group and should be a categorical value.

Parameters:

adata AnnData: Annotated data matrix.
var_names str | Sequence[str] | Mapping[str, str | Sequence[str]]: var_names should be a valid subset of adata.var_names. If var_names is a mapping, then the key is used as label to group the values (see var_group_labels). The mapping values should be sequences of valid adata.var_names. In this case either coloring or ‘brackets’ are used for the grouping of var names depending on the plot. When var_names is a mapping, then the var_group_labels and var_group_positions are set.
groupby str: The key of the observation grouping to consider.
use_raw bool | None (default: None): Use raw attribute of adata if present.
log bool (default: False): Plot on logarithmic axis.
num_categories: Only used if groupby observation is not categorical. This value determines the number of groups into which the groupby observation should be subdivided.
categories_order: Order in which to show the categories. Note: add_dendrogram or add_totals can change the categories order.
figsize tuple[float, float] | None (default: None): Figure size when multi_panel=True. Otherwise the rcParam['figure.figsize] value is used. Format is (width, height)
dendrogram bool | str (default: False): If True or a valid dendrogram key, a dendrogram based on the hierarchical clustering between the groupby categories is added. The dendrogram information is computed using scanpy.tl.dendrogram(). If tl.dendrogram has not been called previously the function is called with default parameters.
gene_symbols str | None (default: None): Column name in .var DataFrame that stores gene symbols. By default var_names refer to the index column of the .var DataFrame. Setting this option allows alternative names to be used.
var_group_positions Sequence[tuple[int, int]] | None (default: None): Use this parameter to highlight groups of var_names. This will draw a ‘bracket’ or a color block between the given start and end positions. If the parameter var_group_labels is set, the corresponding labels are added on top/left. E.g. var_group_positions=[(4,10)] will add a bracket between the fourth var_name and the tenth var_name. By giving more positions, more brackets/color blocks are drawn.
var_group_labels Sequence[str] | None (default: None): Labels for each of the var_group_positions that want to be highlighted.
var_group_rotation: Label rotation degrees. By default, labels larger than 4 characters are rotated 90 degrees.
layer str | None (default: None): Name of the AnnData object layer that wants to be plotted. By default adata.raw.X is plotted. If use_raw=False is set, then adata.X is plotted. If layer is set to a valid layer name, then the layer is plotted. layer takes precedence over use_raw.
show bool | None (default: None): Show the plot, do not return axis.
save str | bool | None (default: None): If True or a str, save the figure. A string is appended to the default filename. Infer the filetype if ending on {'.pdf', '.png', '.svg'}.
ax: A matplotlib axes object. Only works if plotting a single component.
**kwds: Are passed to heatmap().

Return type:

dict[str, Axes] | None

Returns:

A list of Axes.

Examples

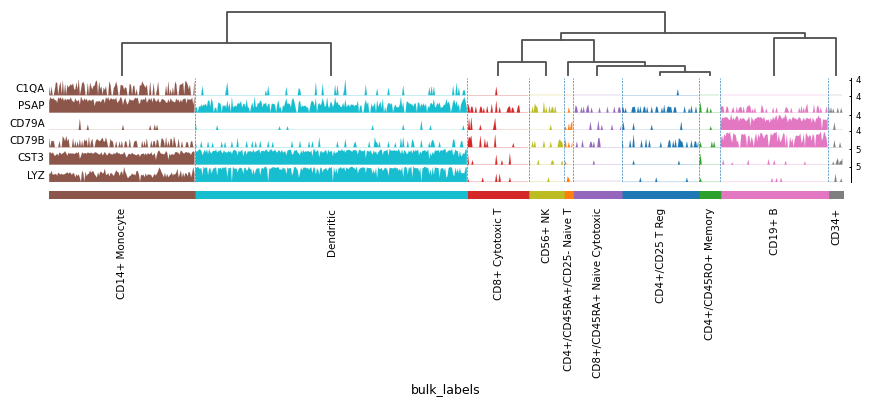

Using var_names as list:

import scanpy as sc
adata = sc.datasets.pbmc68k_reduced()
markers = ['C1QA', 'PSAP', 'CD79A', 'CD79B', 'CST3', 'LYZ']
sc.pl.tracksplot(adata, markers, groupby='bulk_labels', dendrogram=True)

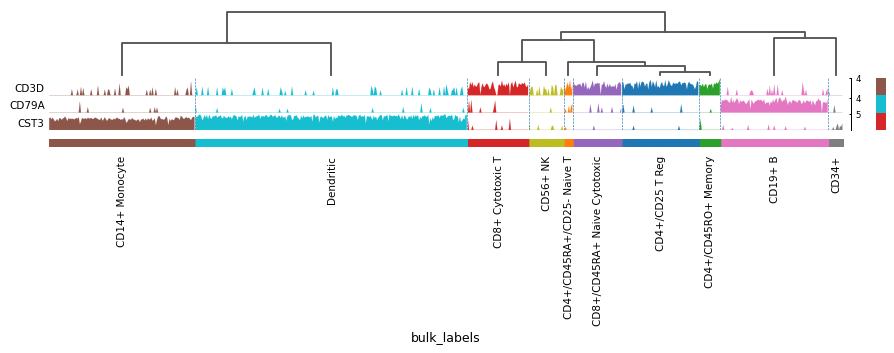

Using var_names as dict:

markers = {'T-cell': 'CD3D', 'B-cell': 'CD79A', 'myeloid': 'CST3'}
sc.pl.tracksplot(adata, markers, groupby='bulk_labels', dendrogram=True)
